The SM series are 2.5mm pitch,wire-to-wire connectors,that perform reliably in high-density,small current applications.
- High contact pressure
- Highly reliable housing construction
- Mountable on a variety of panels
- Arm lock mechanism

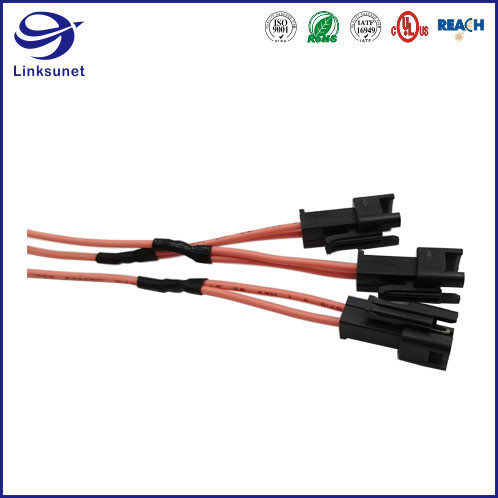

| Automobile Wiring Harness with jst smr 2.5mm Crimp terminal connector |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | JST Sales America Inc. |
| Series | SM |
| Connector Type | Male Pin, Receptacle |
| Contact Type | Female |
| Number of Positions | 2 - 16 |
| Pitch | 2.5mm |
| Rows | 1 |
| Current Rating | 3 A |
| Voltage Rating | 250 V |
| Operating Temperature | -25 °C~85 °C |
| Mounting Type | Free Hanging |
| Housing Material | Polyamide |
| Contact Termination | Crimp |
| Contact Material | Tin |
| Wire Gauge | 22 AWG~28 AWG |
| Color | Black |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
