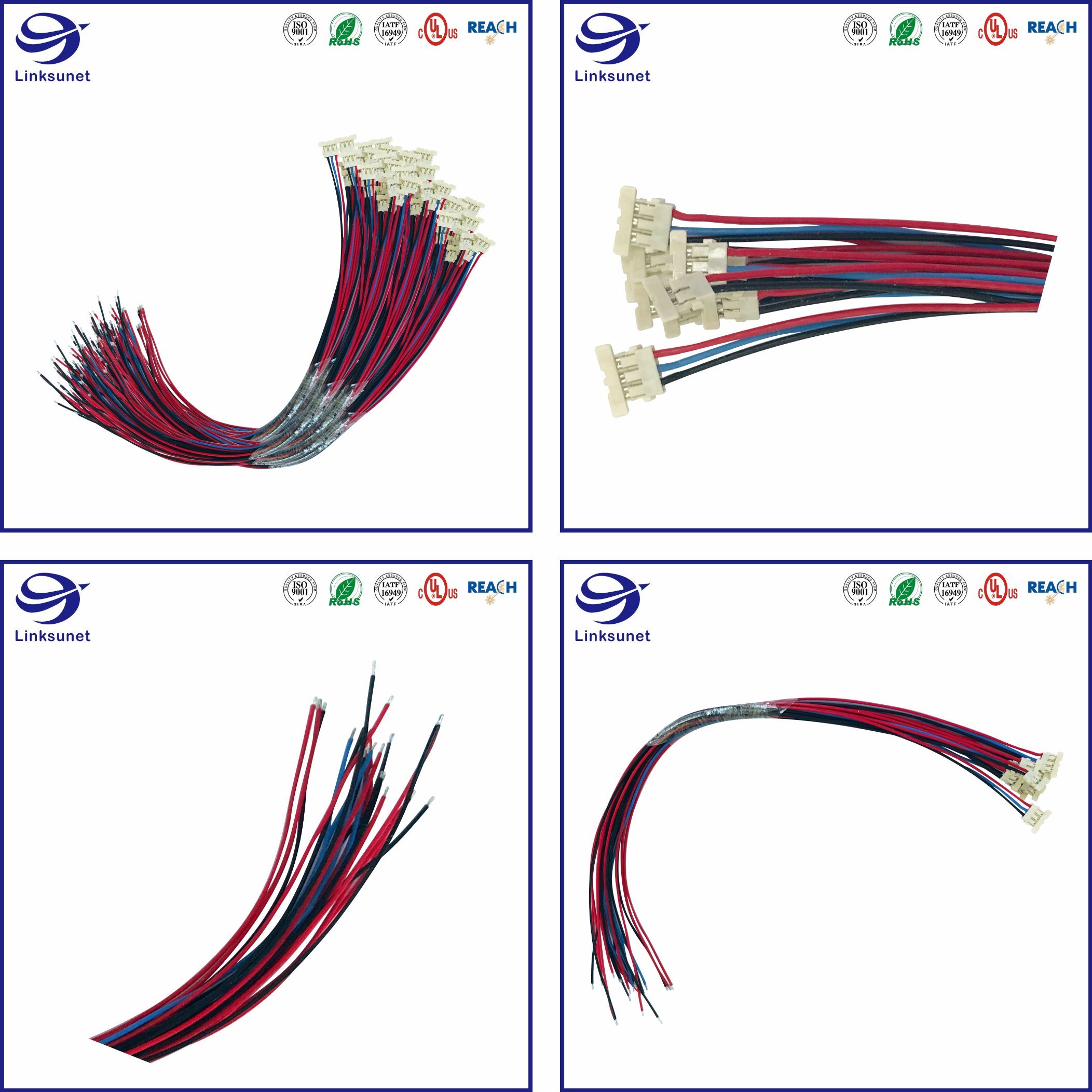

Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

Product Categories
Linksunet E.T Co; Limited
Contact Now

Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

Brand Name : HRS

Model Number : DF58-2/3/4/6S-1.2C

Certification : ROHS

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 100000000PCS

Delivery Time : 15D

Packaging Details : 15*15*15cm/30*20.5*5cm/36*24*8cm

Series : DF58

Pins : 2 / 3/ 4 / 6

Pitch : 1.2mm

Type : Male

Length : Customizable

Color : Black

Contact Now

  Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

Product Description
Hirose electric df58 wire to board connector

The Hirose electric DF58 wire to board connector is a thin connector for small size devices with a stack
height of 1.0 mm. The DF58 connector ensures the alignment of the vertical patch cables. The Hirose
series uses a proprietary vise (vertical insert swing pull out) lock design to enhance cable side locking.
Vise lock prevents cables from being easily disconnected due to high-strength wiring or excessive load.
The DF58 connector has a high current capability of up to 3.0A and is designed for power applications.

CHARACTERISTIC
  • Small-sized, low profile connector with 1.0mm stacking height
  • Leveling of the vertical mating cable
    • Vertical insertion of the connector for mating enhances the assembly operation within device
  • Proprietary ViSe Lock design
    • Prevents the cables from being easily disconnected due to tough routing or an excessive load
  • High current capability up the maximum of 3.0A
  • High reliability contact design
    • Effective mating length of 0.29mm achieved despite low profile 1.0mm stacking height
    • 2-point clipping contact stabilizes contact resistance
  • Halogen-free
  Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector
  Categories   Connectors, Interconnects
  Rectangular Connectors - Contacts
  Manufacturer   Hirose Electric Co Ltd
  Series   DF58
  Pins   2 / 3 / 4 / 6
  Pitch   1.2mm
  Rows   1
  Type   Male
  Rated Current   3A
  Shell material   Liquid Crystal Polymer (LCP)
  Color   Black


Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

FAQ

Standard                                                        Confirm

Product quality standard:IPC/WHMA-A-620B                The first product confirmation TO customer

Requirements and Acceptance for Cable and

Wire Harness Assemblies



Sample                                                          L/T,MOQ

We are must charge the sample expense,                       Lead Time:Material complete after 1-2 weeks

when under you order form,we return the                         delivery(usually)

sample expense                                                                MOQ: Depends on the main material



Wire &Cable                                               Customized

High ranking : Leoni, Lapp, Helukable, Igus,                  Special products, we can mold custom, time 3-6

Apha, Belden, 3M, or Customer specified                       weeks

Mid-ranking : Ltk, Wonderful, Cableplus,

Honglin



Packing                                                        Connector

Carton or wooden case packing                                     Dominant brands: Te, Molex, Amphenol, Harting,

Logistics:Customer forwarder,Our forwarder                  Yeonhab,Jst.



Q How can I get the sample to check your quality?

After price confirmation, you can require for samples to check our product’s quality. We are must charge

the sample expense, when under you order form, we return the sample expense.



Q What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please

tell us in your email so that we will regard you inquiry priority.



Q What is your term of delivery?

We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective

for you.



Q What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.



PRODUTC FLOW



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector



WORKSHOP



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector



CERTIFICATION

Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

PACKING



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector



SHOPPING



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

PAYMENT



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector

CONTACT US



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector



Race Automobile wiring harness with Black DF58 1 Row 1.2mm Male Connector
