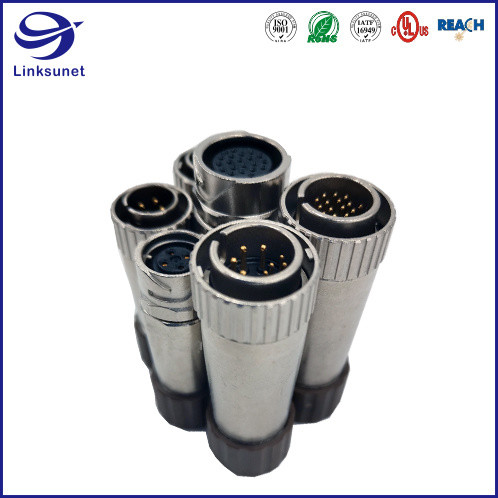

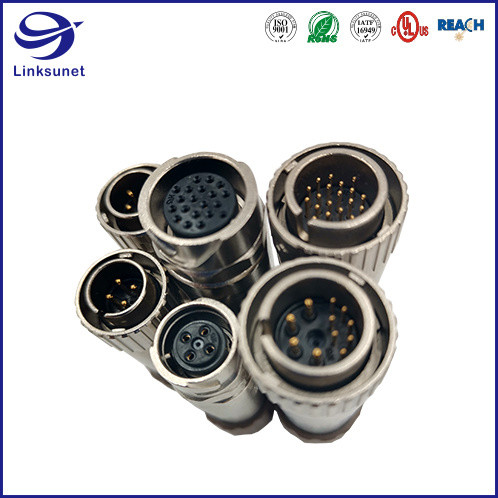

Hirose Electric LF Mini Waterproof Circular Connectors
Hirose Electric LF series Miniature Waterproof Shielded Connectors feature a high current
rating capacity, a bayonet lock that assures secure vibration resistant mating of the connectors,
and IP68 protection rating against dust and water. All components are self-aligning and do
not require complex assembly tooling. The shield of the cable is connected with the metal
housing of the connector using a simple shielding clamp, supplied with the connector.
| Zinc Alloy Male Pin Bayonet Lock HRS Cable Connector for Powertrain Wire Harness |
| Categories | Connectors, Interconnects |
| Circular Connectors |
| Manufacturer | Hirose Electric Co Ltd |
| Series | LF |
| Part Status | Active |
| Connector Type | Jack, Male Pins |
| Number of Positions | 3 / 4 / 6 / 11 / 12 / 20 |
| Shell Size - Insert | 7 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Brown, Silver |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Clamp, Strain Relief |
| Shielding | Shielded |
| Current Rating (Amps) | 5A |
| Voltage Rating | 125VAC, 175VDC |
| Operating Temperature | -25°C ~ 85°C |
| Backshell Material, Plating | Zinc Alloy, Nickel |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Applications | Industrial, Telecommunications |
