Hirose Electric DF1B 2.5mm Pitch Connectors
Hirose Electric DF1B 2.5mm Pitch Connectors come with single and double row contacts
that are aligned for Board-2-Cable and In-line connections. These connectors provide the
option of combining the ID contact and crimping contact and offers various current capacity
cables that can be mixed in one case. The DF1B connectors are available in the standard
tin and gold plated versions.

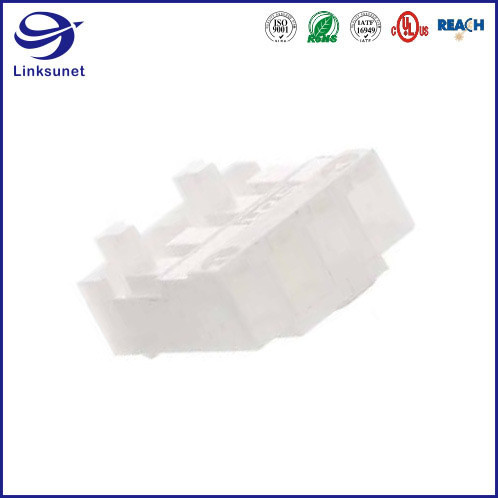

| DF1B Female Socket 1 Row 2.5mm connector for Electric vehicle Wiring Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF1B |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 2 - 36 |
| Pitch | 0.098" (2.5mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp, IDC |
| Color | White |
| Note | Contacts Not Included |
Documents & Media
| Datasheets | DF1B-xS-2.5R Spec |
| DF1B Series Datasheet |
| DF1B-xS-2.5R Drawing |
| Featured Product | DF1B and DF1E Series |
| Product Training Modules | Wire-to-Board Connector |
| Mfg CAD Models | DF1B-4S-2.5R.igs |
| DF1B-4S-2.5R.stp |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form, we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must
charge the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
lease tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost
effective for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
