1. Reliable contact
The contact has long dimples near the centre to ensure a good connection at all times, even under
conditions of vibration and mechanical abuse, and when used with low voltage and low current circuits.
2. Fully shrouded header
The fully shrouded header has walls on all four sides to prevent improper connection to the mating
housing and to prevent the intrusion of flux and other contaminants.
3. Printed circuit board retention mechanism
The solder side of the header has a retention mechanism that prevents it from floating during soldering.
As a result, the header can be positioned accurately.
4. Surface mount model (SMT)
This connector is also available in a surface mount configuration. Its housing is made of heat resistant
resin so that it is not adversely affected during reflow soldering. Because of its tiny size and ability to
be surface mounted, this connector meets the demand for high-density mounting of components inside
electronic products.

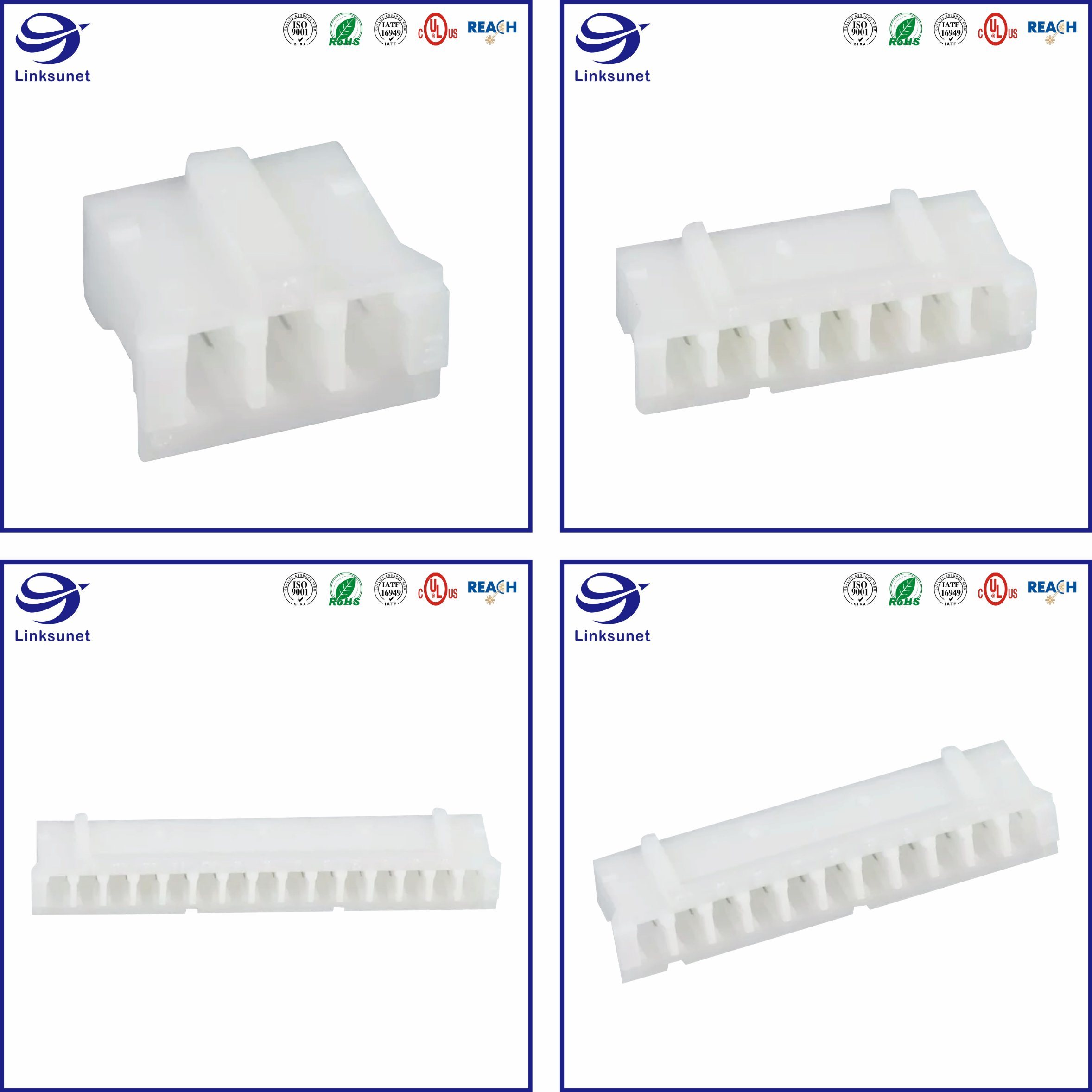

| PH 2.0mm Female Socket 1 Row JST Crimp Terminals for electronics wiring harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | JST Sales America Inc. |
| Series | PH |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 2 - 16 |
| Pitch | 0.079" (2.0mm) |
| Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Detent Lock |
| Color | Natural |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
