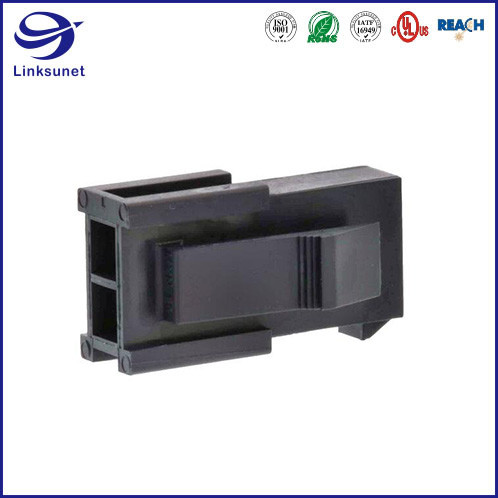

Mini Fit Jr 46993-0210 4.2mm Plug 2P Connectors with Office Equipment Cable
Product Description

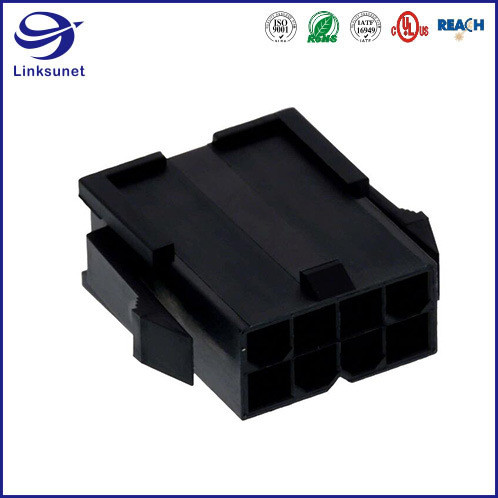

Molex Mini-Fit Jr. Connectors
Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications
which require design flexibility for wire-to-wire and wire-to-board configurations. Molex
Mini-Fit Jr. connectors are ideal for power applications up to 9.0A per circuit. The
connectors feature fully isolated terminals, positive housing locks, low-engagement forces,
and polarized housings, as well as UL recognized, CSA approved, and TUV licensed.
All components are lead-free and RoHS compliant. Molex Mini-Fit Jr. Connectors are
available in a single row or dual row, 2-to-24 circuit options, and features multiple plating
and material selections.
| Mini Fit Jr 46993-0210 4.2mm Plug 2P Connectors with Office Equipment Cable |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | Mini-Fit Jr 46993 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Number of Positions | 2 |
| Pitch | 0.165" (4.20mm) |
| Number of Rows | 2 |
| Row Spacing | 0.165" (4.20mm) |
| Mounting Type | Panel Mount, Snap-In |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | Black |
| Note | Contacts Not Included |
| Base Part Number | 46993 |
Documents & Media
| Datasheets | 046993x Drawing |
| Other Related Documents | Moisturizing Nylon Connector Parts |
| Featured Product | Power Connectors |
| 3D Drawings | 46993-0210.pdf |
| PCN Assembly/Origin | Manufacturing Location 29/Jun/2017 |
| Mfg CAD Models | 46993-0210.prt |
| 46993-0210.igs |
| 46993-0210.stp |
| HTML Datasheet | 046993x Drawing |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
