Micro-Fit 3.0™ Connectors
Micro-Fit 3.0™ Connectors are a 3.00mm pitch high-density, low-power connector system available
in wire-to-wire and wire-to-board configurations with SMT and through-hole options and up to 5.0A
to meet low- to mid-range power application needs. Molex’s Micro-Fit 3.0 Interconnects offer users
a low- to mid-range power-distribution solution with the highest current in the smallest footprint available
today. Based on a 3.0mm centerline Micro-Fit 3.0 is available in wire-to-wire and wire-to-board configurations,
SMT and through-hole processing, 2 to 24 circuits and single- and dual-row versions. Micro-Fit 3.0
Connectors can be purchased in pure tin or one of two thicknesses of select gold to provide costs savings.
Contacts are fully isolated on each side of the interface to eliminate potential arcing and incorporate four
points of contact for redundancy. The housings utilize positive-lock features to prevent accidental
disconnects. Micro-Fit 3.0 Interconnects are UL recognized, CSA approved and TUV licensed. All
components are leadfree, RoHS compliant, halogen free and glow wire capable.

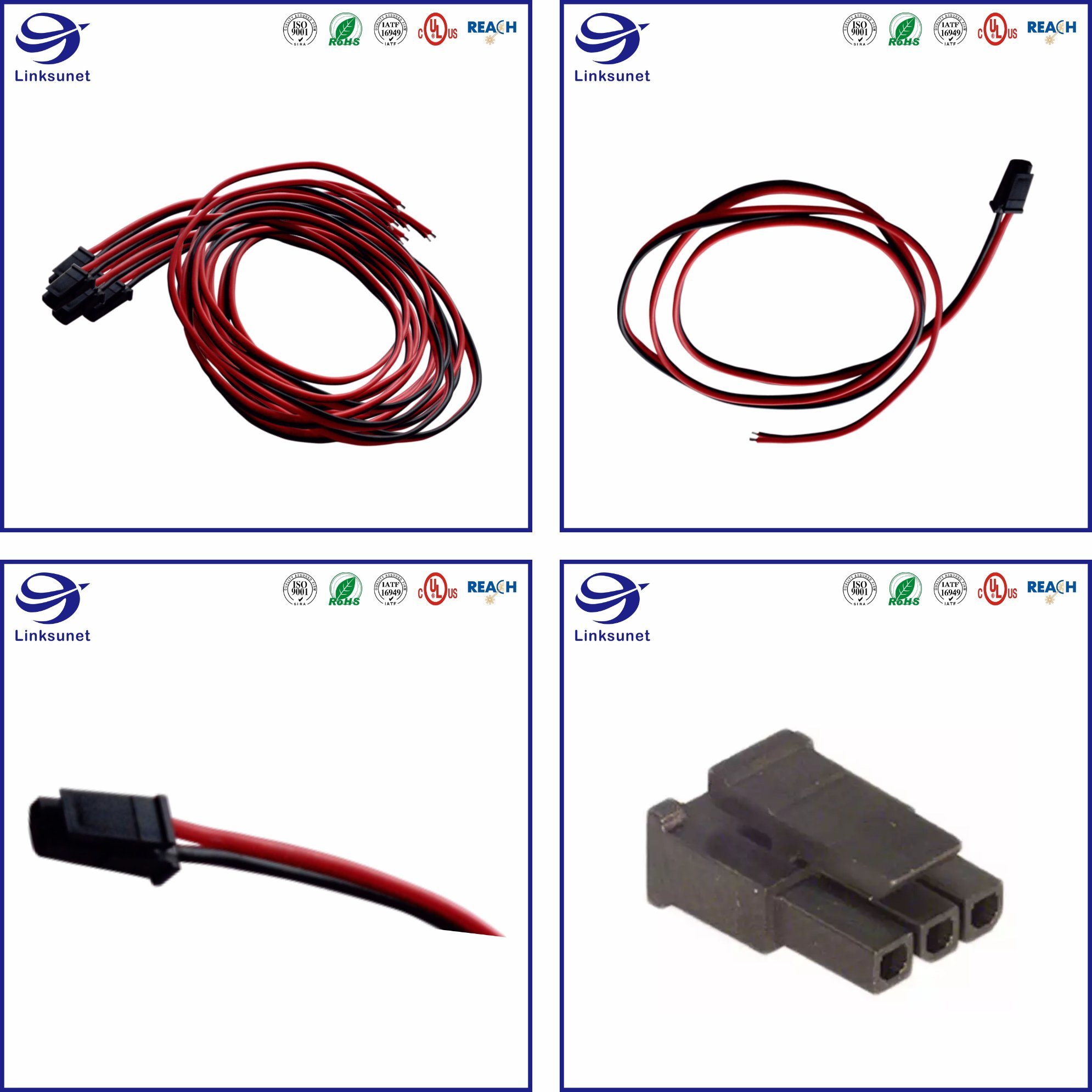

| 20AWG 2C Cable add 43645 3.0mm Connectors Wire Harness for Control Board |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex, LLC |
| Connector Type | Receptacle |
| Series | Micro-Fit 3.0 43645 |
| Contact Type | Female Socket |
| Number of Positions | 2 - 12 |
| Pitch | 0.118" (3.0mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Black |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder, Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
