Characteristic
1.Up to 17a gold plated contacts up to 1
2.Rated voltage: 250VAC
3.16awg to 20awg (1.25mm2 to 0.50mm2)
4.8,14,23,35 hole arrangement
5.PCB installation
6.Rectangular thermoplastic shell
7.Integrated pin for insertion
8.Integrated wedge lock to confirm contact alignment and maintain correct position

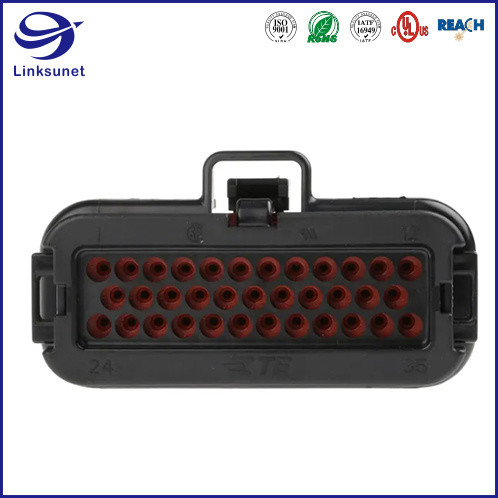

| Ampseal 35pin 3row Female Connectors for Automobile Wire Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | AMPSEAL |
| Connector Type | Plug |
| Contact Type | Female Socket |
| Number of Positions | 35 |
| Pitch | 0.157" (4.0mm) |
| Rows | 3 |
| Row Spacing | 0.157" (4.0mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Wire Gauge | 16-20 AWG |
| Contact Finish | Tin |
| Fastening Type | Latch Lock |
| Color | Natural |
Documents & Media
| CONNECTOR PLUG | 776164-1 |
| CONNECTOR TERMINAL | 770520-1 |
| CONNECTOR COVER | 776463-1 |
| SGL WIRE SEAL | 828904-1 |
| CAVITY PLUG 2.5MM SYST DIA 5.4MM | 828922-1 |
Single wire use
| 1 | FLRY-A/B 0.35/0.5/0.75/1.5/2.5/4MM² |
| 2 | AVE/AVSS/AVESSX 0.3/0.5/0.8/1.5/2.5 |
| 3 | TXL/GXL 22AWG/20AWG/18AWG/16AWG/14AWG |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
