Molex picobalade standard connector
Molex picobade standard connectors support designs for prototyping and global production.
Picobalade socket has the characteristics of small spacing and friction lock, which takes up
less space of circuit board, and can reduce the risk of accidental disconnection caused by
vibration or misoperation. The Molex picobalade connector meets the requirements of
2011 / 65 / EU ROHS directive. Typical applications include consumer products, industrial,
medical and commercial vehicles. The Molex picobalade series also offers a variety of wire
to wire and line to board connectors, including SMT and terminal connectors, as well as
shields and PCB pins. Wire to board connectors are available in 2, 8, or 15 circuits, while
wire to wire connectors are available in 2, 6, or 10 circuits, both for 26awg to 32awg wires.

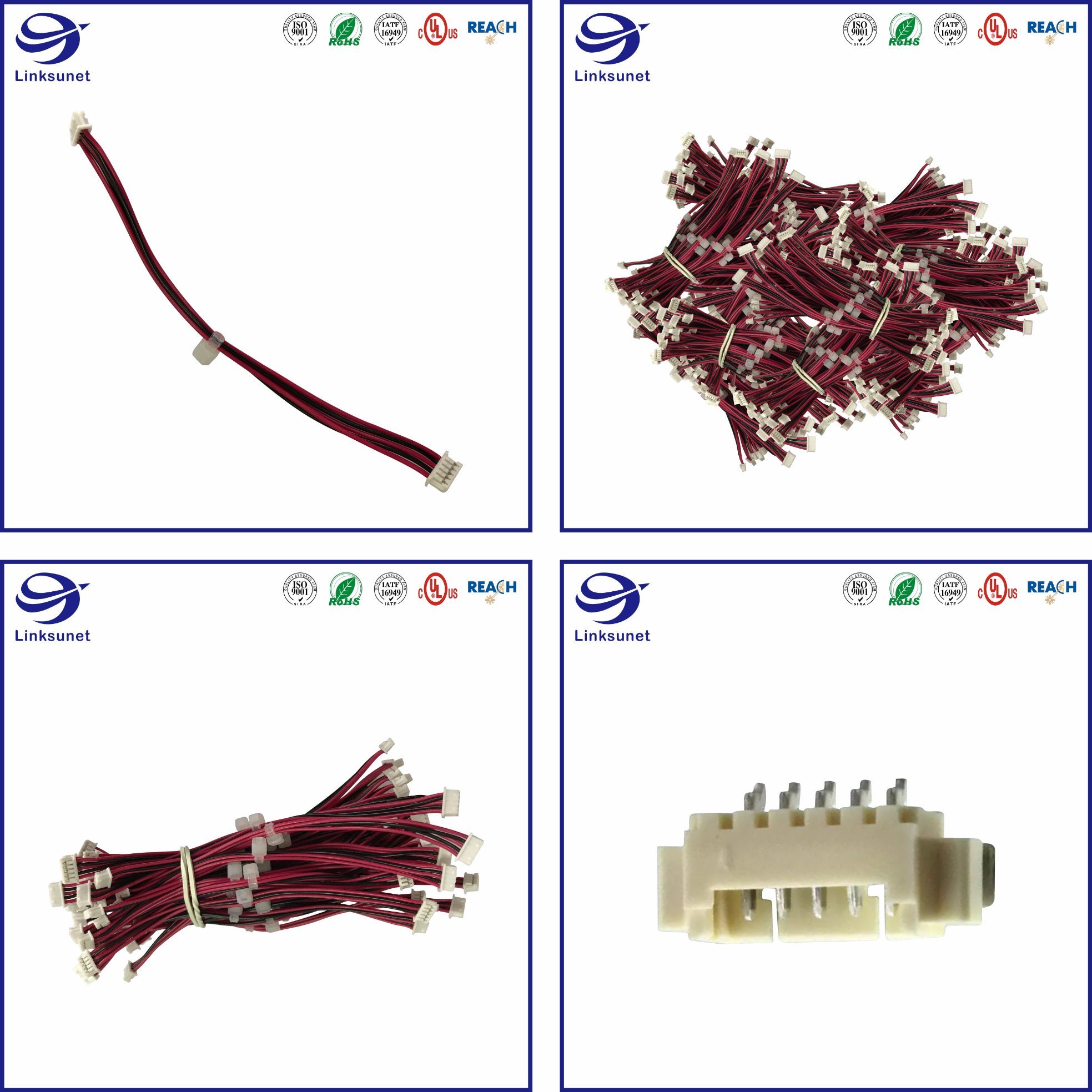

| Soldering Wire Harness with Picoblade 53261 1.25mm Male Blade Connectors |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Molex, LLC |
| Connector Type | Header |
| Series | PicoBlade 53261 |
| Contact Type | Male Blade |
| Number of Positions | 2 |
| Pitch | 0.049" (1.25mm) |
| Number of Rows | 1 |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Color | Natural |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
