FEATURES
Fully isolated terminals: Protects terminals against potential damage during handling.
Positive locking housings: Easy to operate thumb latch assures connectors are fully
mated. Positive locking prevents accidental unmating.
Polarized mating geopmetry: Ensures header and receptacle cannot be mismatched.
Scoop-Proof housings: Ensures terminals and header pins are not damaged if parts
are mated at a severe angle.
Receptacles and plugs accept standard Mini-Fit and Mini-Fit Plus crimp terminals:
Reduces the number of part numbers to purchase and inventory.
Available in UL94V-0, V-2, 265°C reflow, Glow-Wire, and Low-Halogen compliant
materials: Ideal for many applications to meet global material requirements.

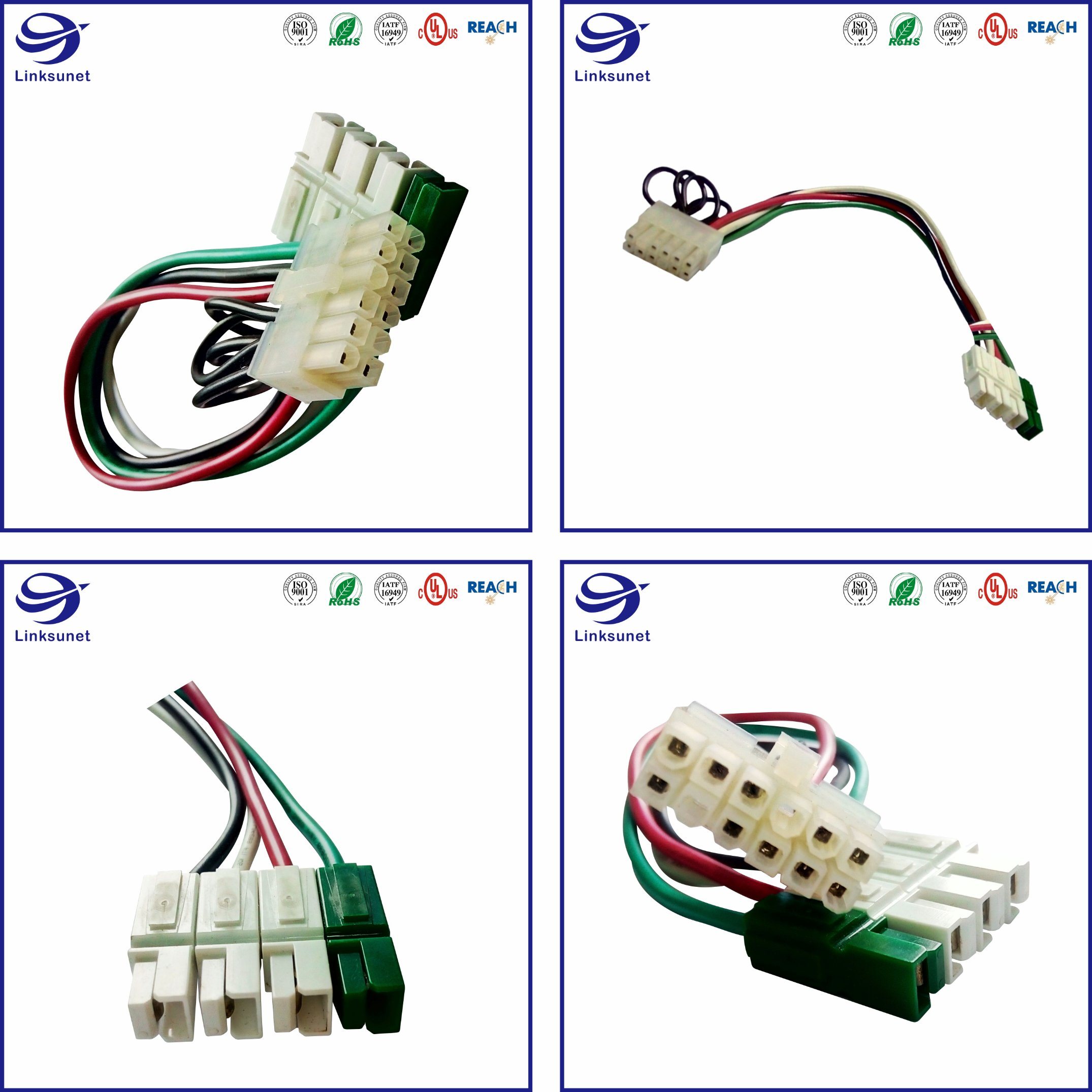

| Industrial Wire Harness with 5557 4.2mm 2 Rows Crimp Connector |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex, LLC |
| Connector Type | Receptacle |
| Series | Mini-Fit Jr 5557 |
| Contact Type | Female Socket |
| Number of Positions | 4 - 24 |
| Pitch | 0.165" (4.2mm) |
| Number of Rows | 2 |
| Row Spacing | 0.165" (4.2mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Natural |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
