TE Connectivity micro quadlok system automotive connector
TE Connectivity micro quadlok system (MQS) automotive connector adopts 2.54mm neutral
line, which is suitable for vehicle applications with high vibration and mechanical stress. TE
Connectivity MQS has the advantages of existing contact systems, including high package
density, high current carrying capacity, robust design and safe operation. Socket contacts
and pin contacts can be safely inserted into the contact cavity and emit a clear click when
locked. The socket contacts four contacts on 0.63 x 0.63 mm pin contacts and achieves
current carrying capacity up to 7.5 a C (at 80 ° C). Micro power quadlok and power quadlok
systems expand the range of MQS contact series and add valuable features. Micro power
quadlok uses a 5.08mm neutral line with a maximum current carrying capacity of 34a or 25A.
Power quadlok adopts 7.62mm neutral line and has a current carrying capacity of 45A or 30A.
TE Connectivity MQS 1.5mm is suitable for sealed and unsealed applications. MQS 1.5mm
can be used with MQS, micro power quadlok and power quadlok to provide secondary
locking in a common horizontal plane.

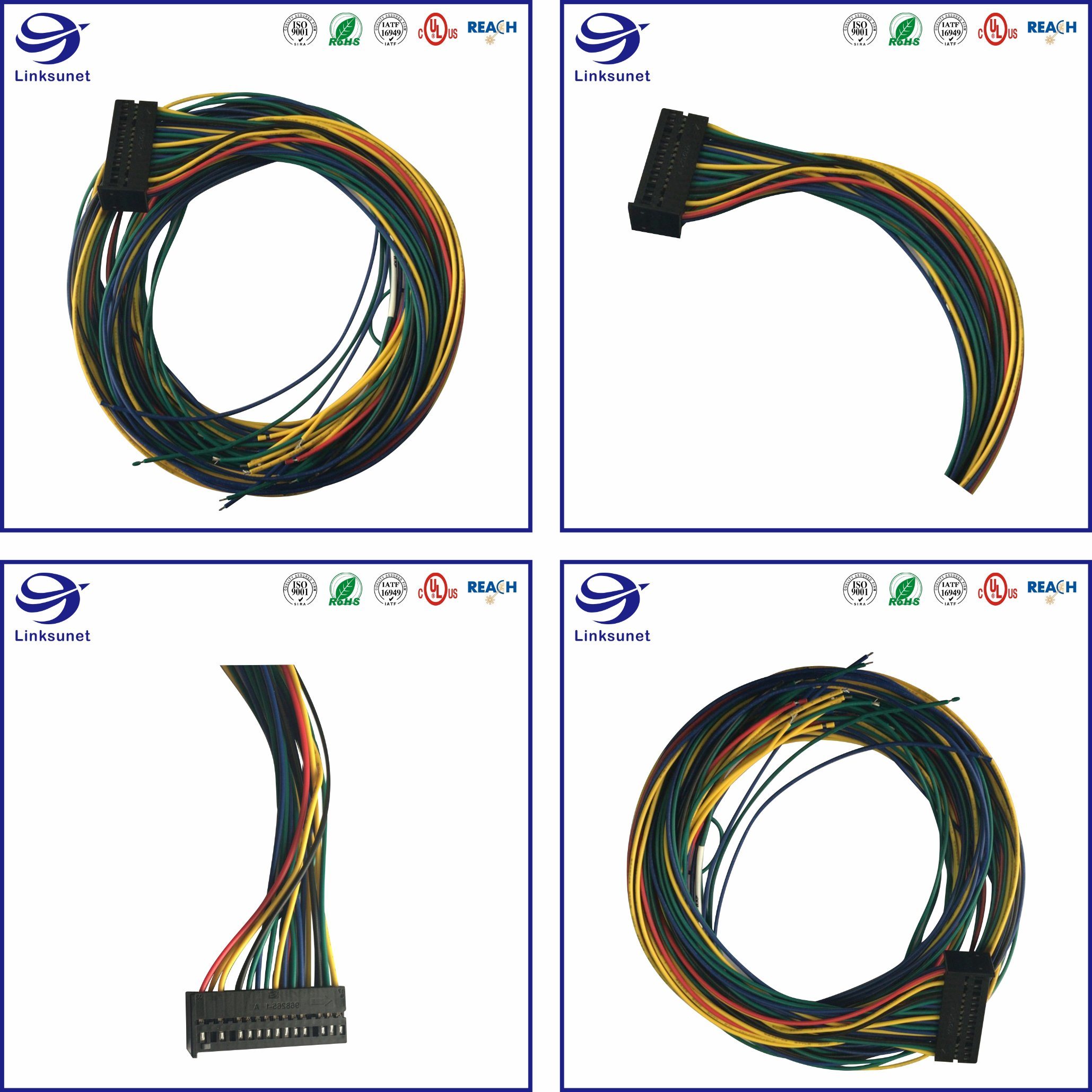

| Custom Wire Harness with Micro Quadlok 2.54mm 2 row Receptacle Connector |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Micro Quadlok |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 32 |
| Pitch | 0.100" (2.54mm) |
| Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
