Molex transportation solutions
Molex transportation solutions help develop future oriented applications such as advanced
control panel displays, fully integrated high-speed on-board networks, enhanced safety devices,
and high-performance engines and gearboxes. Molex transportation products focus on integrated
solutions that deliver higher performance and efficiency in smaller package sizes. Molex
transportation solutions provide power and signal solutions that meet demanding automotive
industry standards for body electronics, driveline and safety applications.

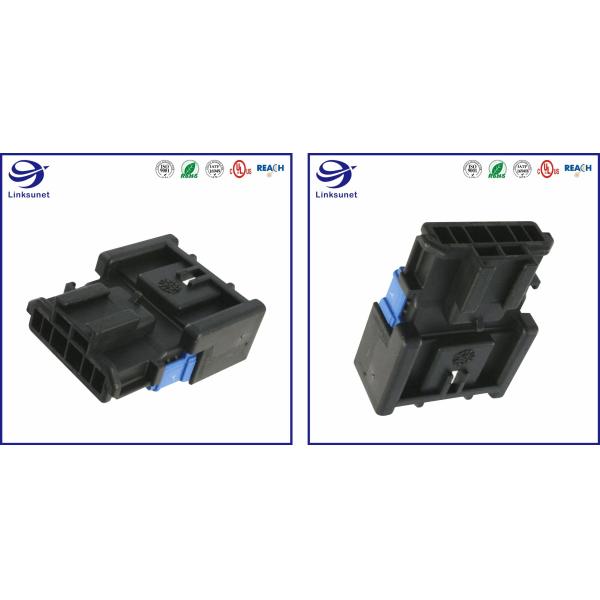

| NSCC 98825 Male Pin 1row connector for Auto display Wiring Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Housings |
| Manufacturer | Molex |
| Series | NSCC 98825 |
| Packaging | Bulk |
| Part Status | Active |
| Contact Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Color | Black |
| Note | Contacts Not Included |
Documents & Media
| Datasheets | NSCC 1.5, UCC 2.8, Hybrid Prod Spec |
| 098825106x Drawing |
| 98821-001 Appl Spec |
| Environmental Information | 988251061 RoHS Cert of Compliance |
| Featured Product | New Standard Casing Contact |
| Mfg CAD Models | 0988251061.prt |
| 0988251061.igs |
| 0988251061.stp |
| PCN Assembly/Origin | Multiple Devices Location 04/Jun/2019 |
| HTML Datasheet | 098825106x Drawing |
| 98821-001 Appl Spec |
| NSCC 1.5, UCC 2.8, Hybrid Prod Spec |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
